ReadyShunt

Integrated Line

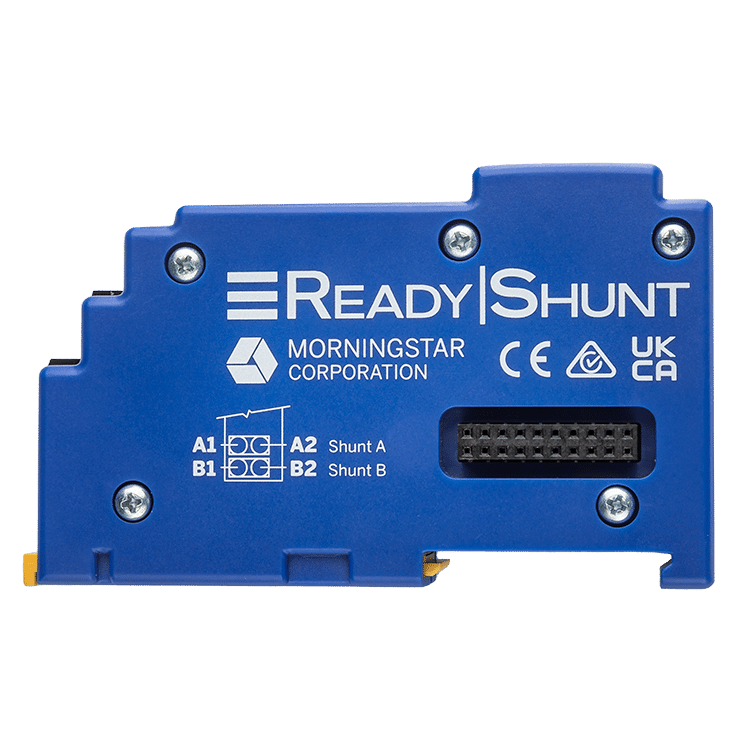

ReadyShunt is a battery meter and DC current sensor that provides visibility to critical battery information including SOC (state-of-charge) and other key metrics essential to battery and off-grid system health. It supports lead acid, lithium, and other battery chemistries.  ReadyShunt easily snaps into a ReadyRail-equipped Morningstar product.  After following operating manual instructions to connect your battery, the ReadyShunt is recognized and activated.

Part of the ReadyBlock suite of add-on– yet built-in– functionality available in Morningstar “host” components featuring the ReadyRail expansion system.

  • “Add-on” in the sense that ReadyBlocks can be integrated into a system at any time, either on inception or later as needs arise
  • “Built-in” because once added, ReadyBlocks become part of the host component, seamless integrated into both its hardware and software

Model numbers associated with this product:

Works with GenStar MPPT Fully-Integrated DC Solar Charger



Models: RB-SHUNT BLOCK,

Key Features and Benefits
  • Provides an integrated “battery meter” for lead-acid and other chemistries to determine SOC and other health metrics
  • Net battery current measurement enables system-wide maximum charge current into the battery when multiple charge sources are present.
  • Current measurement data is automatically integrated into the GS LiveView dashboard, data logging.  Thus there’s no more clunky 3rd party meter add-ons requiring different interfaces, meters, etc. No software configuration to integrate the data – we do that for you
  • Shunt data is made available to the user for use in logic configuration for decision-making.
  • Highly configurable to accommodate a wide range of shunt sizes with both 50mV and 100mV scaling options
  • Available in a kit wit 50mV/500A shunt or just the block
