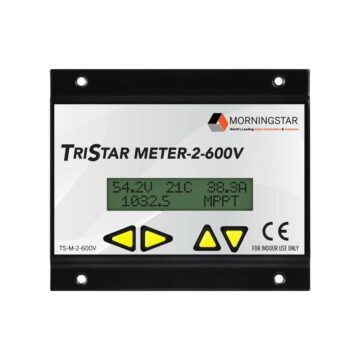

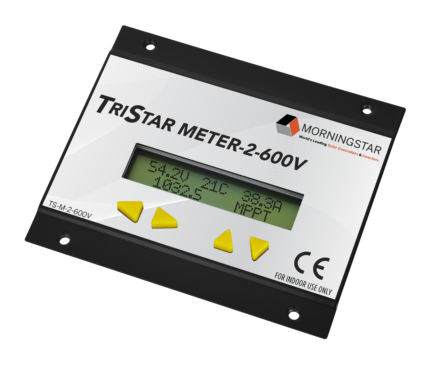

TriStar Meter-2-600V

TriStar Meter-2-600V

On-Board Advanced Digital Display for the TriStar MPPT 600V Controller. Displays extensive system and controller information, logged data, bar graph metering, as well as alarms and faults for easy troubleshooting. The information may be shown in English, French, German, Portuguese or Spanish languages.

Key features and benefits

  • Easy to install
  • Networking capability
  • Easy to use
  • Four directional pushbuttons for easy navigation of display screen
  • Backlighting to enhance readability
  • Meter may be added during initial controller installation, added as an upgrade anytime in the future or connected temporarily for troubleshooting with the ability to use this same meter at other sites

Specifications and Certifications

Model TS-M-2-600V
Self Consumption <0.5W, 42.5mA (backlight on)
Operating Temperature Range -40 C to +60C
Warranty 5 Years
CE and RoHS Yes
ETL Recognized Component FCC Class B Part 15 Compliant Yes
ACMA-EMC Compliant Yes
Manufactured in a Certified ISO 9001 Facility Yes

Datasheets

Download the TriStar Meter-2-600V Datasheet.

Operation Manuals

Download the TriStar Meter-2-600V Manual.

Related Products

  • MeterHub

    enables up to 15 Morningstar products on a single MeterBus network

  • TriStar MPPT 600V

    600 volt charge controllers with 60 amp charge rating
