TriStar MPPT 600V

The TriStar MPPT 600V™  is a breakthrough in charge controller design. By accepting PV array input up to 600 Voc, it enables installers to design systems with longer, fewer strings, reducing cabling and hardware which make installation and wiring easier and faster. Morningstar’s advanced digital engineering combined with superior thermal management make the TS-MPPT-600V with TrakStar technology the only charge controller in its class that doesn’t require a cooling fan or fans, making it both extremely reliable and efficient (with 97.9% peak efficiency). Ideal for DC-coupled energy storage applications. Available in four versions:

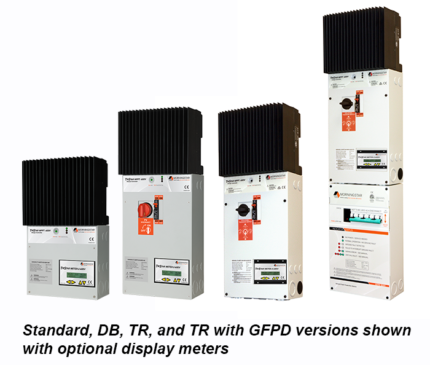

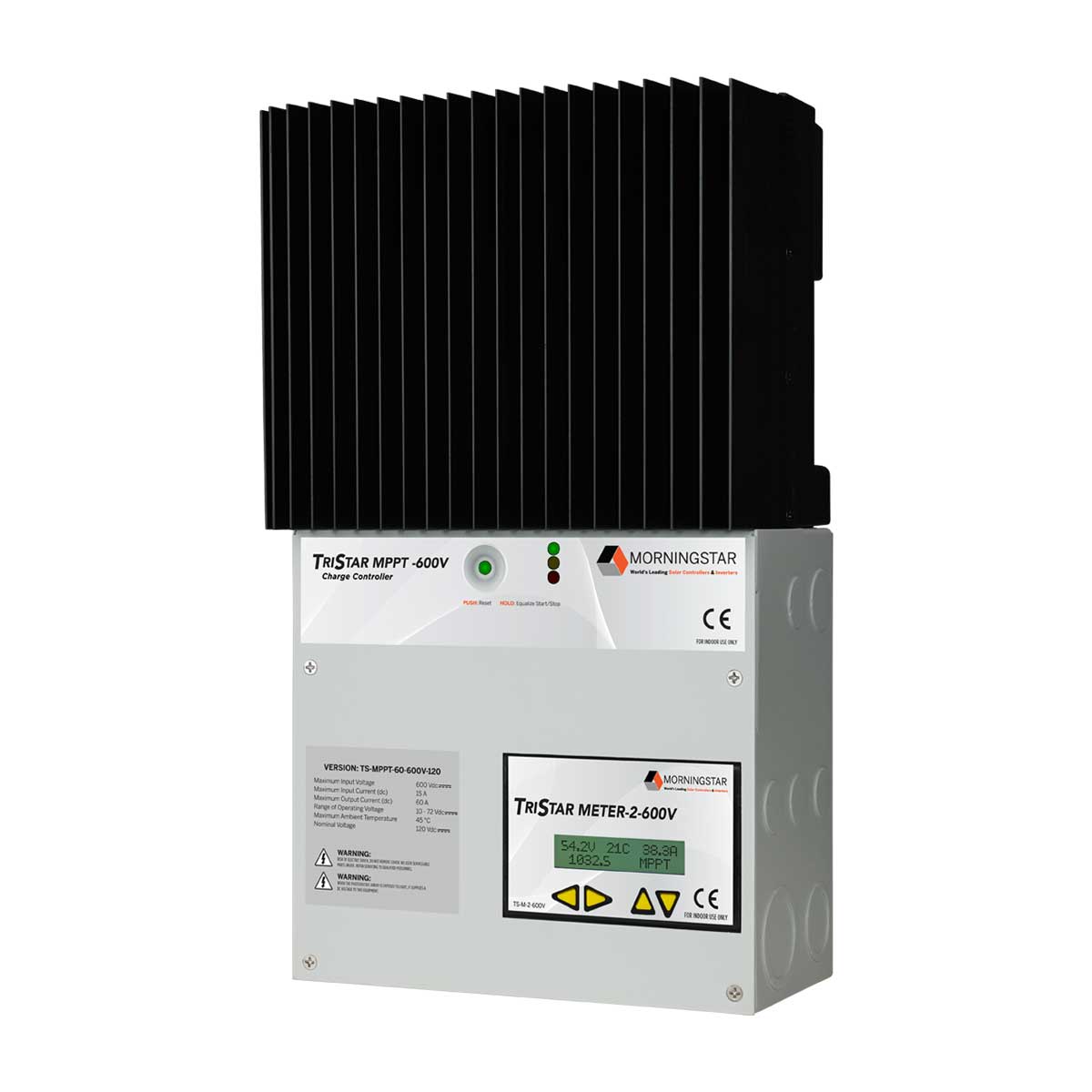

  • TS-MPPT-60-600V-48: Standard
  • TS-MPPT-60-600V-48-DB: with Disconnect Box

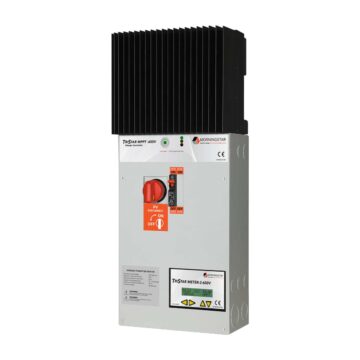

  • TS-MPPT-60-600V-48-DB-TR: with DC Transfer Switch
  • TS-MPPT-60-600V-48-DB-TR-GFPD: Pre-wired with Ground Fault
    Protection Device

Key features and benefits

  • Accommodates PV systems > 150 Voc with long wire runs from the array to the controller.
  • Uses Morningstar’s patented 4-stage charging algorithm to optimize battery health.
  • Extensive system networking, monitoring and communications.
  • Optimized for harsh environments and equipped with electronic protections.
  • Enables battery back-up for grid-tied systems using more efficient DCcoupling system topology (as opposed to AC-coupling).
  • Fanless design for long-term reliability.

Specifications and Certifications

Model TS-MPPT-60-600V-48 TS-MPPT-60-600V-48-DB TS-MPPT-60-600V-48-DB-TR TS-MPPT-60-600V-48-DB-TR-GFPD
*Input power can exceed Nominal Operating Power. Controller will limit and provide its rated continuous maximum output current into batteries.
Charge Rating 60 amps 60 amps 60 amps 60 amps
Max. PV Open Circuit Voltage (Voc) 600 volts 600 volts 600 volts 600 volts
Nominal Battery Voltage 48V, custom programmable
to 24V, 36V, and 60V
48V, custom programmable
to 24V, 36V, and 60V
48V, custom programmable
to 24V, 36V, and 60V
48V, custom programmable
to 24V, 36V, and 60V
Nominal max. Operating Power* - 48 volt battery 3200W 3200W 3200W 3200W
Peak efficiency 97.9% 97.9% 97.9% 97.9%
Battery Voltage Range 16-72V 16-72V 16-72V 16-72V
PV Input Operating Voltage Range 100V to Voc = 525V 100V to Voc = 525V 100V to Voc = 525V 100V to Voc = 525V
Self-Consumption 1.75 - 2.50W 1.75 - 2.50W 1.75 - 2.50W 1.75 - 2.50W
Transient Surge Protection 4500 Watts/port 4500 Watts/port 4500 Watts/port 4500 Watts/port
Voltage Accuracy <=0.1% +/- 100mV <=0.1% +/- 100mV <=0.1% +/- 100mV <=0.1% +/- 100mV
Operating Temperature Range -40 C to +45C -40 C to +45C -40 C to +45C -40 C to +45C
Warranty 5 Years 5 Years 5 Years 5 Years
CE and RoHS compliant Yes Yes Yes Yes
IEC 62109 Yes Yes Yes Yes
ETL Listed [UL-1741 and Canadian CSA C22.2 No.107.1.01] Yes Yes Yes Yes
FCC Class B Part 15 Compliant Yes Yes Yes Yes
Manufactured in a Certified ISO 9001 Facility Yes Yes Yes Yes

Datasheets

Download the TriStar MPPT 600V Solar Charge Controller Datasheet.

Operation Manuals

Download the TriStar MPPT 600V Solar Charge Controller Manual.

Videos

TriStar MPPT 600V Standard and DB Versions - 3 minute video

This video highlights the standard and disconnect box (DB) versions of the TriStar MPPT 600V charge controller. These devices provide an ideal solution for systems that require long wire runs from PV arrays to the controller. Included in the video are pictures of the controller, and applications diagrams regarding grid-tie battery backup and input to PV  systems. Additional features such as communications, metering and monitoring are also addressed.

TriStar MPPT 600V Transfer Switch (TR) Versions - 3 minute video

Most residential and light commercial grid-tied solar systems need utility power to operate, so they won’t function during a grid outage. This animated video illustrates how Morningstar’s TriStar MPPT 600V Controller with DC Transfer Switch can be used with other components to charge battery systems to provide backup power to run your critical loads when the grid goes down. This is a clean, economical, scalable solution that does not compromise your solar system’s efficiency.

Grid-tied Battery Backup & TriStar MPPT 600V Controller With DC Transfer Switch

Recorded Webinar

This webinar features the TriStar MPPT 600V Controller With DC Transfer Switch and its application to retrofit existing grid-tied solar systems with battery backup. Morningstar’s DC coupled solution offers a clean, simple, affordable way to provide battery backup power for critical lights and appliances in the event of a grid failure. Viewers will see how this solution compares to other options such as AC coupling and generator backup.
