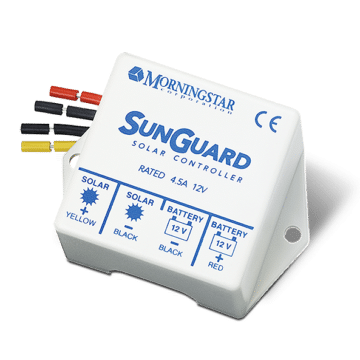

  • straight view

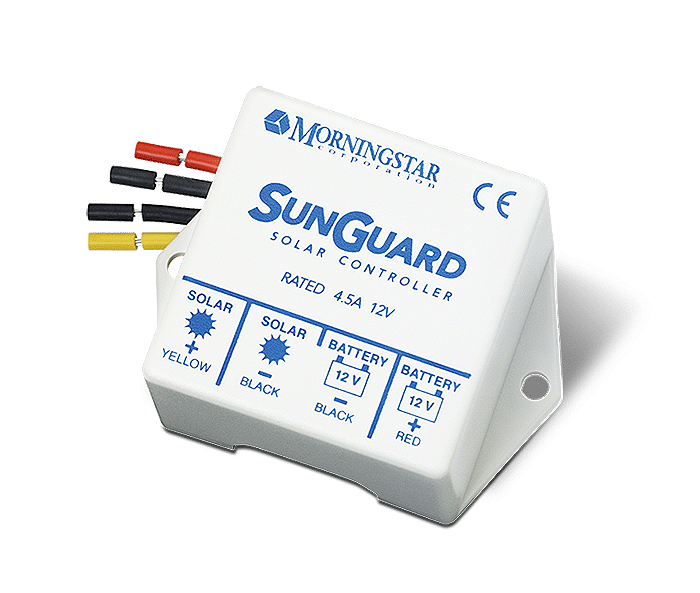

  • angled view

SunGuard

The SunGuard™ is a single module, compact PWM solar charge controller for small systems, ideal for both professional and consumer use. With SunGuard, there’s no reason not to insist on Morningstar quality with any system design—no matter how small.

“Rock solid, potted so waterproof, long
track-record…great charge controller for a small system”

Key features and benefits

  • Rugged design—100% solid state, epoxy encapsulated; rated for 25%
    overcurrents (no need to de-rate)
  • Longer battery life—series design PWM charging (instead of shunt)
    with temperature compensation, low self-consumption
  • Easy to install—outdoor rated connecting wires make a waterproof
    connection to the solar module and battery
A. Premium high-frequency CoilCraft surface mount inductors

They’re worth it, because they provide the faster power “tracking” that lets us engineer this much power and control into a compact design.

B. High-frequency design

Combined with premium, “over-spec’d” components, this greatly improves control response which guards against system transients, regulation overshoot and overcurrent/overload conditions

C. Built-in 4500W Transient Voltage Surge Suppression for lightning protection

Nature do your worst–this controller can take it

D. Large diameter, high torque, corrosion resistant terminals

If you’ve ever trashed a lesser terminal during an installation, you’ll appreciate some “overkill” here

E. DirectFET™ MOSFET power devices

Allows the surface-mounting of critical components underneath the main board next to the heat sink, which reduces heat travel distance and keeps the controller even cooler

F. Highly-conductive aluminum heatsink extrusion

As opposed to cast aluminum, which is less effective in passive cooling applications

G. Communications/data port with serial/meter auto detect

“Talks solar” with standard industry language, for system monitoring and cloud connectivity-speaks Modbus, and SNMP (with the EMC-1)

H. Lithium foldback circuit

Lithium batteries are expensive and vulnerable to cold temperatures. When it gets close to freezing, the controller backs-off charging to avoid damaging batteries

I. High-speed ARM processor

All-digital calibration for high accuracy, using the same efficient technology found in advanced mobile device

J. TrakStar™ Technology

Morningstar’s hallmark MPPT technology precisely seeks and locks onto the true maximum power point quickly and accurately, to ensure the highest output possible from a solar array

K. Large format, high-resolution backlit LCD

When you’ve been in the field installing, you appreciated being able to read a crisp, high contrast display on site

L. 5 year warranty

Up to 2 1/2 times longer than some competitors in this class

M. Self-diagnostics

ProStar is smart enough to monitor and analyze system performance, and alert you when you need to know

N. High temperature architecture

Heat is the enemy of all electronics. That’s why Prostar’s critical components are rated to withstand temperatures right up to the boiling point of water (100°C)

O. Lexan polycarbonate UL listed case

Protects the precision electronics inside with an impact strength 30 times greater than the acrylic thermoplastics commonly found on lesser controllers

P. Cooling Fan

Just kidding. We’ve never needed them

Specifications and Certifications

Model SG-4
*Input power can exceed Nominal Operating Power. Controller will limit and provide its rated continuous maximum output current into batteries.
Charge Rating 4.5 amps
Max. PV Open Circuit Voltage (Voc) 30 volts
Nominal Battery Voltage 12V
Self-Consumption 6mA
Voltage Accuracy 60mV
Operating Temperature Range -40 C to +60C
Warranty 5 Years
CE and RoHS compliant Yes
Manufactured in a Certified ISO 9001 Facility Yes
