Charge Controller Family Directory

Solar charge controllers use one of two technologies:
Maximum Power Point Tracking (MPPT) or Pulse Width Modulation (PWM)

MPPT technology

(Maximum Power Point Tracking)

Can convert all the solar electricity voltage possible into useable electricity. MPPT's maximum conversion efficiency is ideal for areas where seasonal, weather and shading conditions cause wide variations in solar “harvesting.” Because of additional circuitry, MPPT is more complex and expensive. Morningstar TrackStar™ MPPT technology is the industry’s reference standard

PWM technology

(Pulse-Width Modulation)

Used in places with consistent sunlight, minimal shading and no physical space limitations—such as at the top of light poles, for example. PWM controllers are simpler and more cost effective, ideal for use in systems where extracting every last watt of electricity possible from a PV array is not a concern

Integrated Series
Our flagship series of products that delivers state-of-the-art power conversion, a full complement of communications capabilities, seamless expandability, and a comprehensive platform of software functionality to cover the varied and demanding needs of industrial applications.

GenStar MPPT

Flagship in the new Integrated Series line, a fully-integrated Solar DC Systems Controller.  Unique ReadyRail architecture means that relay, shunt, and battery management, and other  functions can be added  via unique, snap-in ReadyBlocks that seamlessly expand GenStar’s capabilities.


MPPT Models

Genstar

GS-MPPT-100

100A battery current, up to 5320 Wp solar input .12, 24, 48Vdc. Meter standard.

Genstar

GS-MPPT-80

80A battery current, up to 4250 Wp solar input .12, 24, 48Vdc. Meter standard.

Genstar

GS-MPPT-60

60A battery current, up to 3200 Wp solar input .12, 24, 48Vdc. Meter standard.

Legendary reliability and performance make Morningstar Professional Series the leading charge controller brand for mission-critical off-grid solar powering applications—and the first choice of leading system designers and installers for over a quarter-century.

TriStar™

Iconic design and the first choice for larger off-grid solar electric systems up to 3kWp. Proven in mission-critical installations around the globe.

“One of the best charge controllers out there…these things are tanks.”


MPPT Models

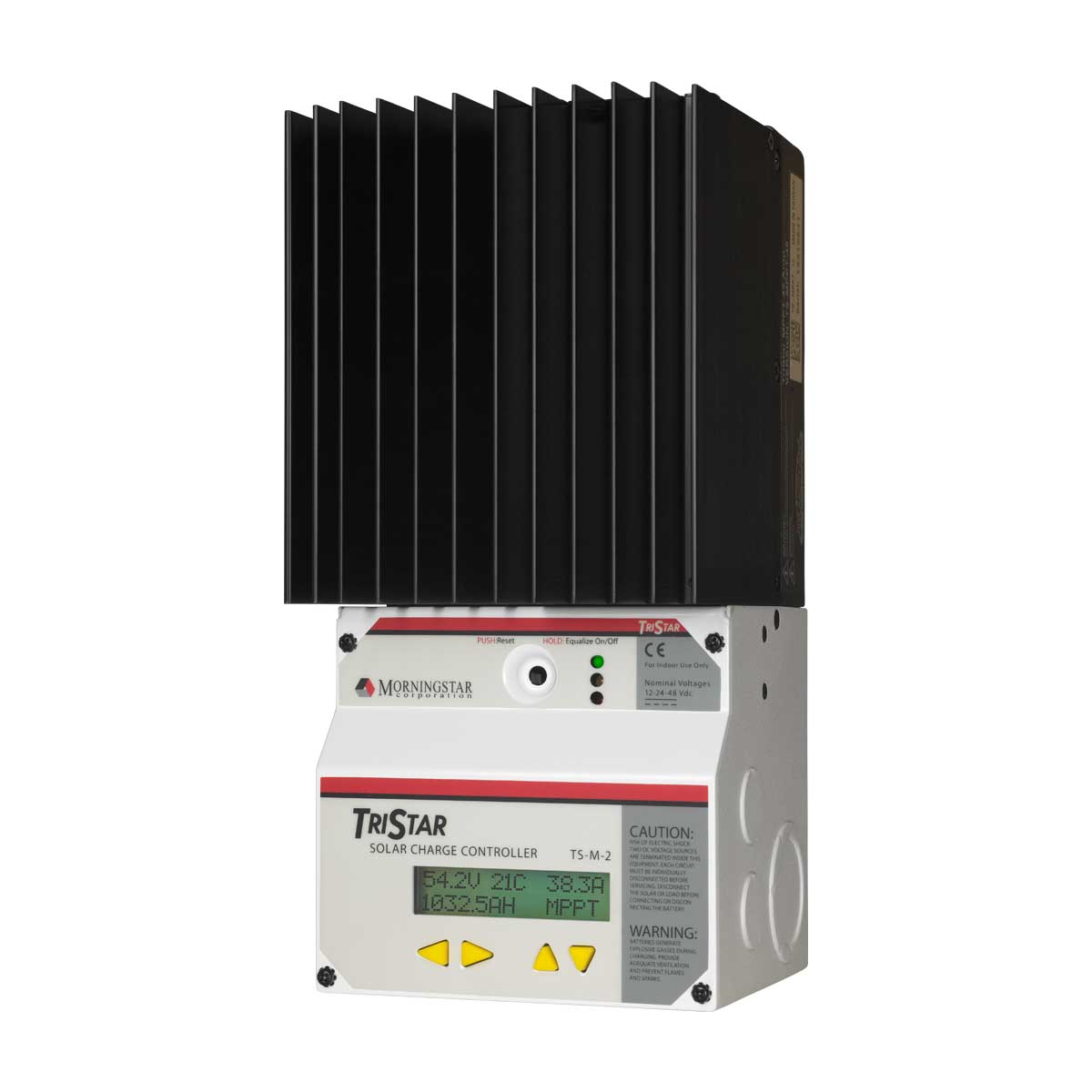

TriStar MPPT

TS-MPPT-60M

60A battery current, up to 3200Wp solar input.12, 24, 48Vdc. Meter standard.

TriStar MPPT

TS-MPPT-60

Same as the TS-MPPT-60M but without the meter (optional).

TriStar MPPT

TS-MPPT-45

45A battery current, up to 2400Wp solar input. 12, 24, 48Vdc. Meter optional.

TriStar MPPT

TS-MPPT-30

30A battery current, up to 1600Wp solar input. 12, 24, 48Vdc. Meter optional.

TriStar MPPT 600V

TS-MPPT-60-600V -48

Standard Version of our 600V controller enabling longer "strings." Shown with optional meter.

TriStar MPPT 600V

TS-MPPT-60-600V -48-DB

Standard Version of our 600V controller with DC Disconnect Box enabling longer "strings."

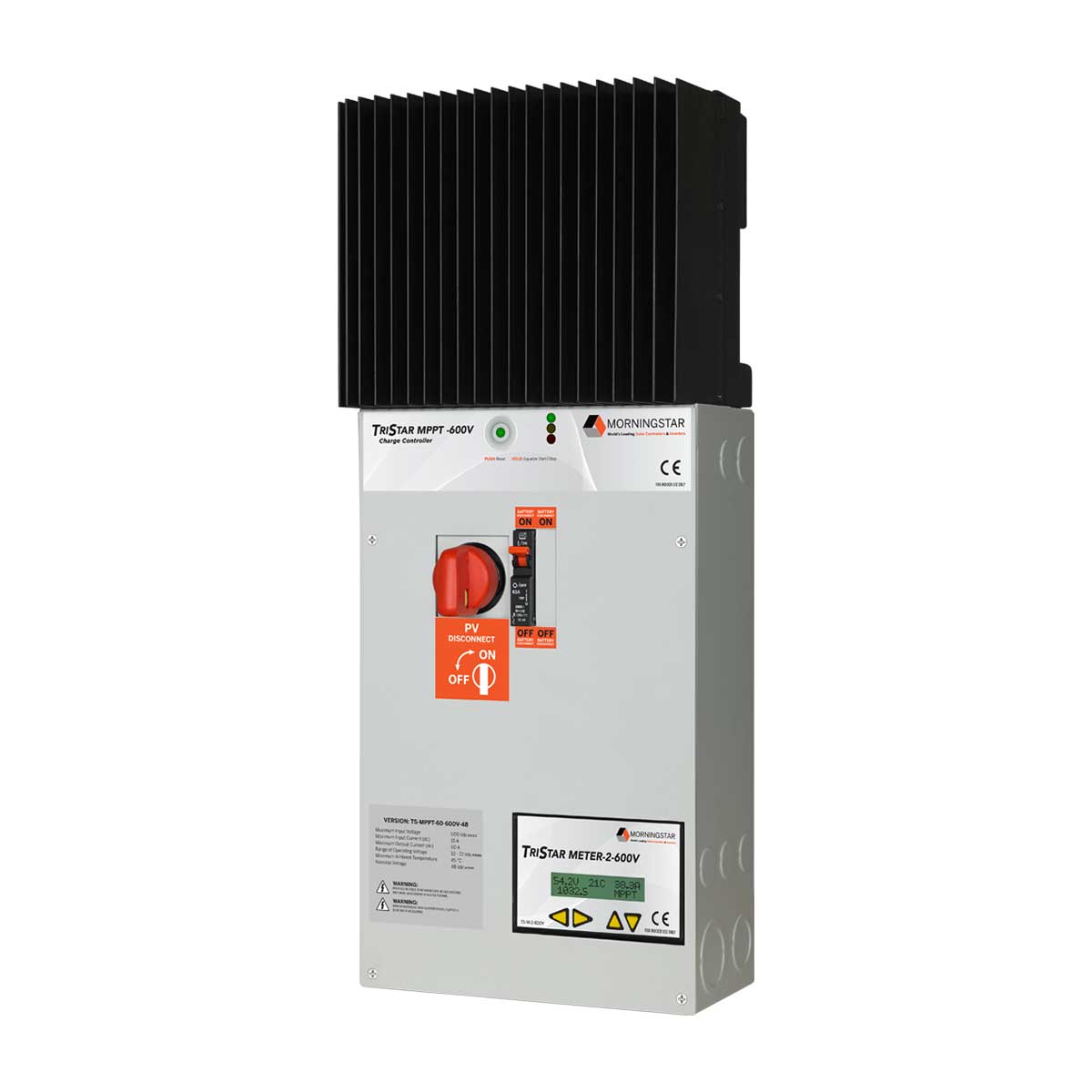

TriStar MPPT 600V

TS-MPPT-60-600V-48-DB-TR

Standard Version of our 600V controller with Transfer Switch enabling longer "strings."

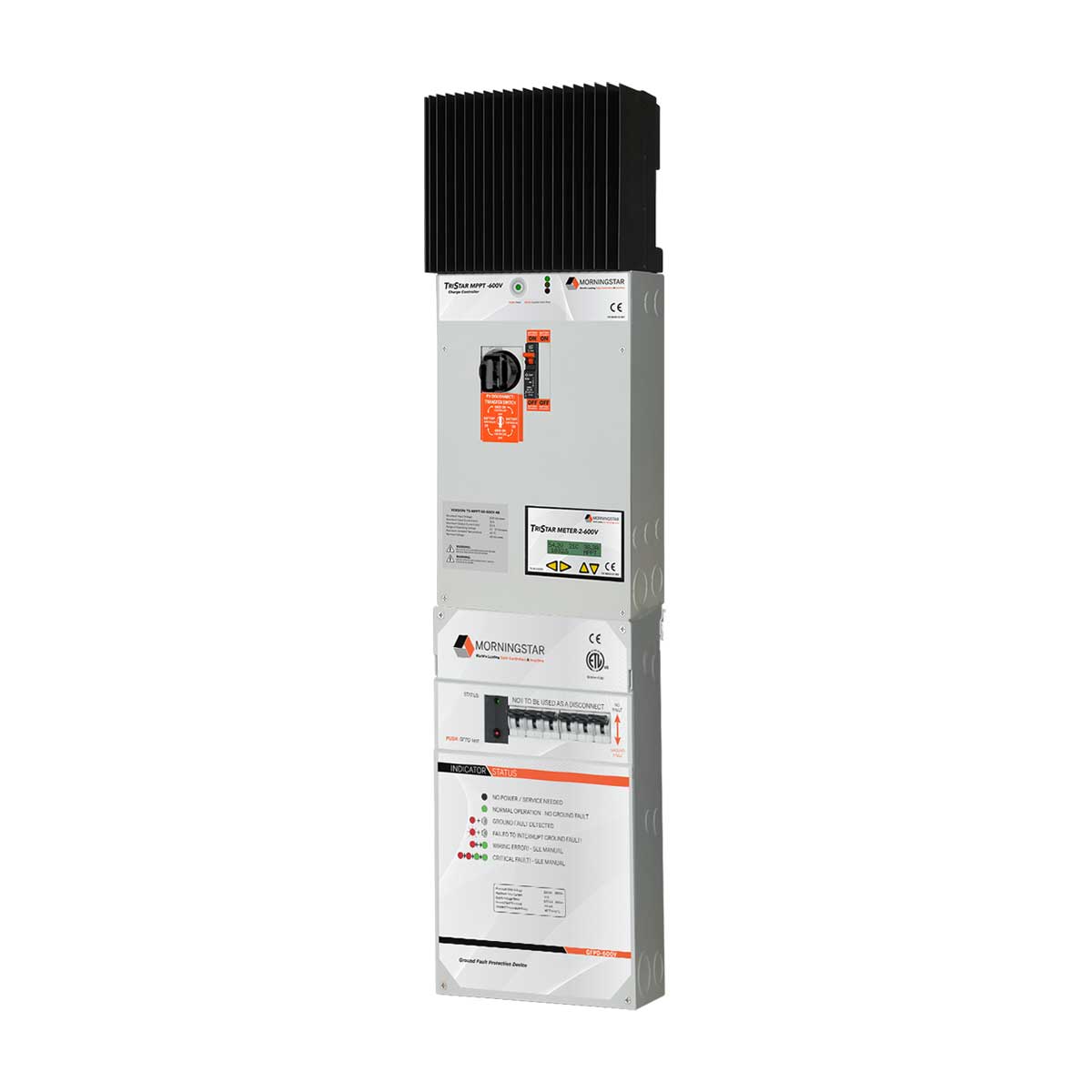

TriStar MPPT 600V

TS-MPPT-60-600V-48-DB-TR-GFPD

Standard Version of our 600V controller pre-wired with GFPD enabling longer "strings."

PWM Models

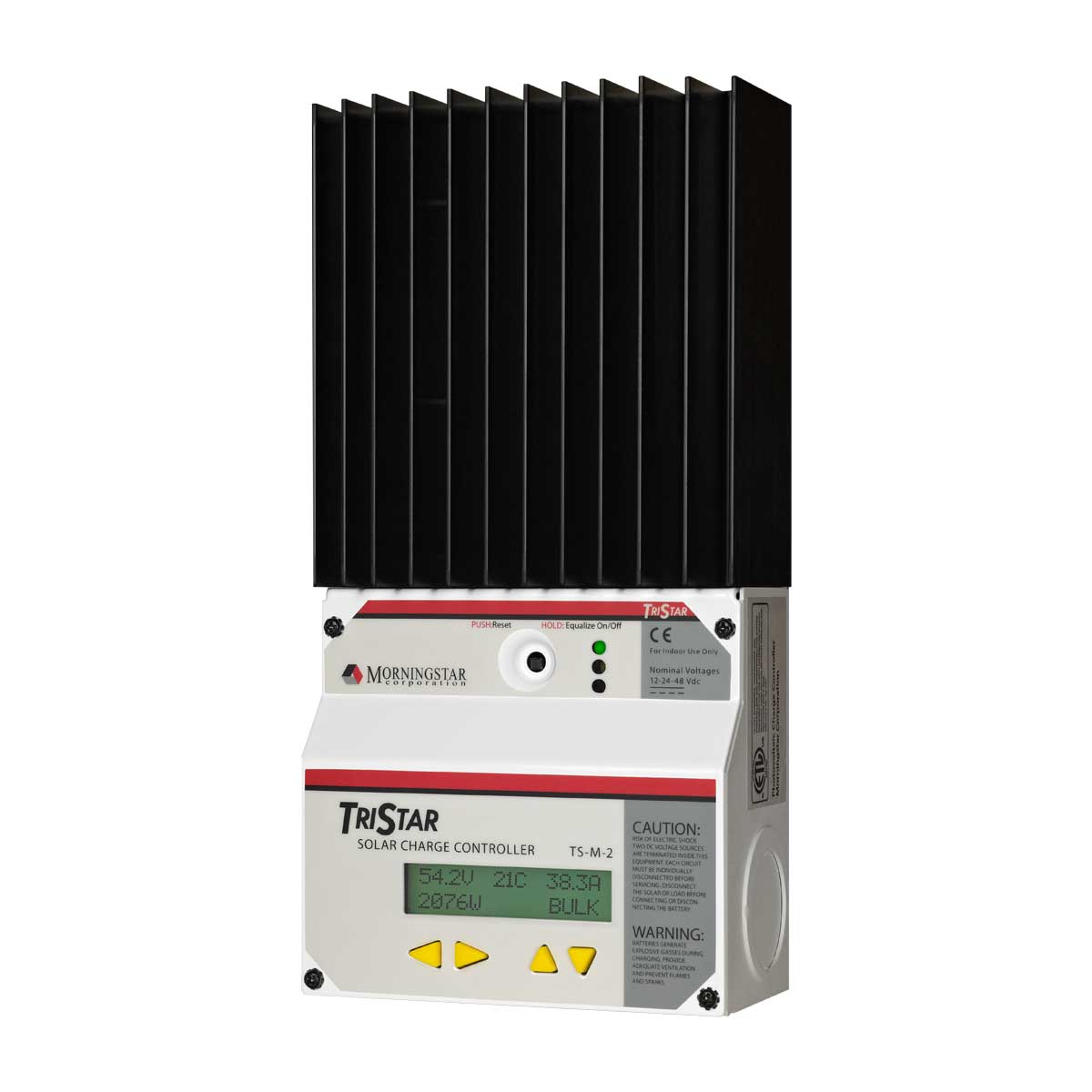

TriStar

TS-60M

60A solar, load or diversion current. 12, 24, 48Vdc. Meter standard.

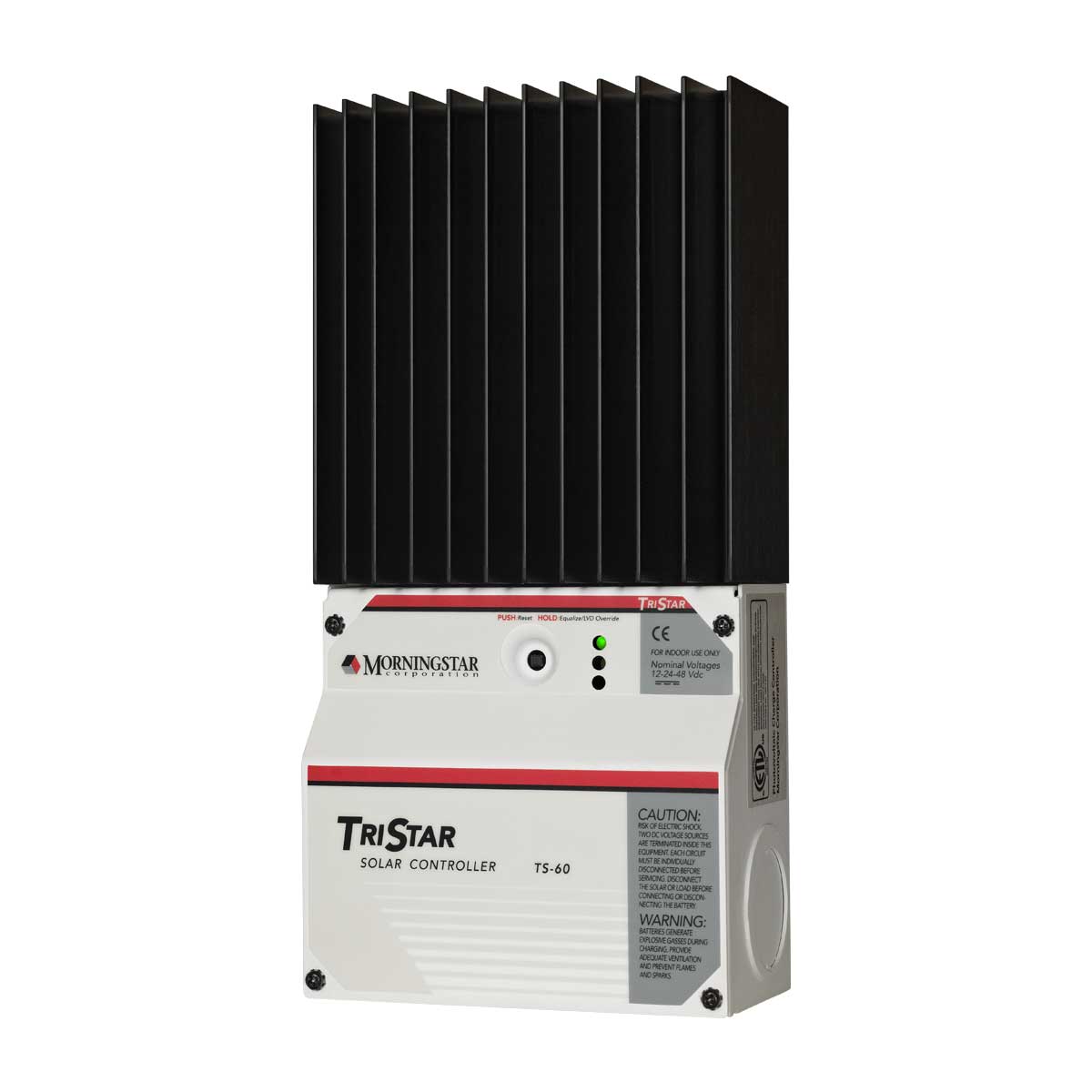

TriStar TS-60

TS-60

Same as TS-60M but without the meter (optional).

TriStar TS-60

TS-45

45A solar, load or diversion current. 12, 24, 48Vdc. Meter optional.


ProStar™

Proven in over two decades of use in mid-range off-grid PV systems up to 1,100Wp. ProStar today is built on continuous improvements, with regular upgrades and enhancements-both “the legend and the latest in the same product”

“You get what you pay for, and this one is worth every penny…count on Morningstar.”


MPPT Models

ProStar MPPT

PS-MPPT-40M

40A battery current, up to 1100W. 12, 24Vdc. With meter.

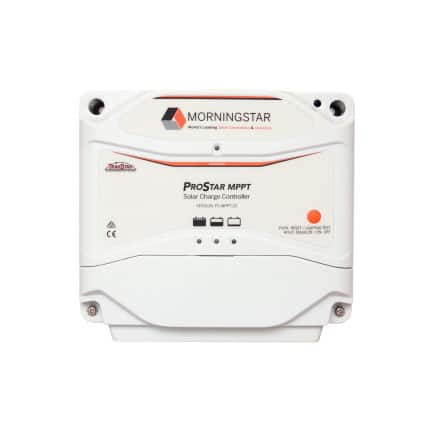

ProStar-MPPT

PS-MPPT-40

Same as the PS MPPT-40M but without the meter.

ProStar MPPT

PS-MPPT-25M

25A battery current, up to 700W. 12, 24Vdc. With meter.

ProStar-MPPT

PS-MPPT-25

Same as the PS MPPT-25M but without meter.

PWM Models

ProStar Gen3 PS-15M

PS-30M

30A solar and load current. 12, 24Vdc. With meter.

ProStar Gen3

PS-30

Same as PS-30M but without the meter.

ProStar Gen3 PS-15M

PS-15M

15A solar and load current. 12, 24Vdc. With meter.

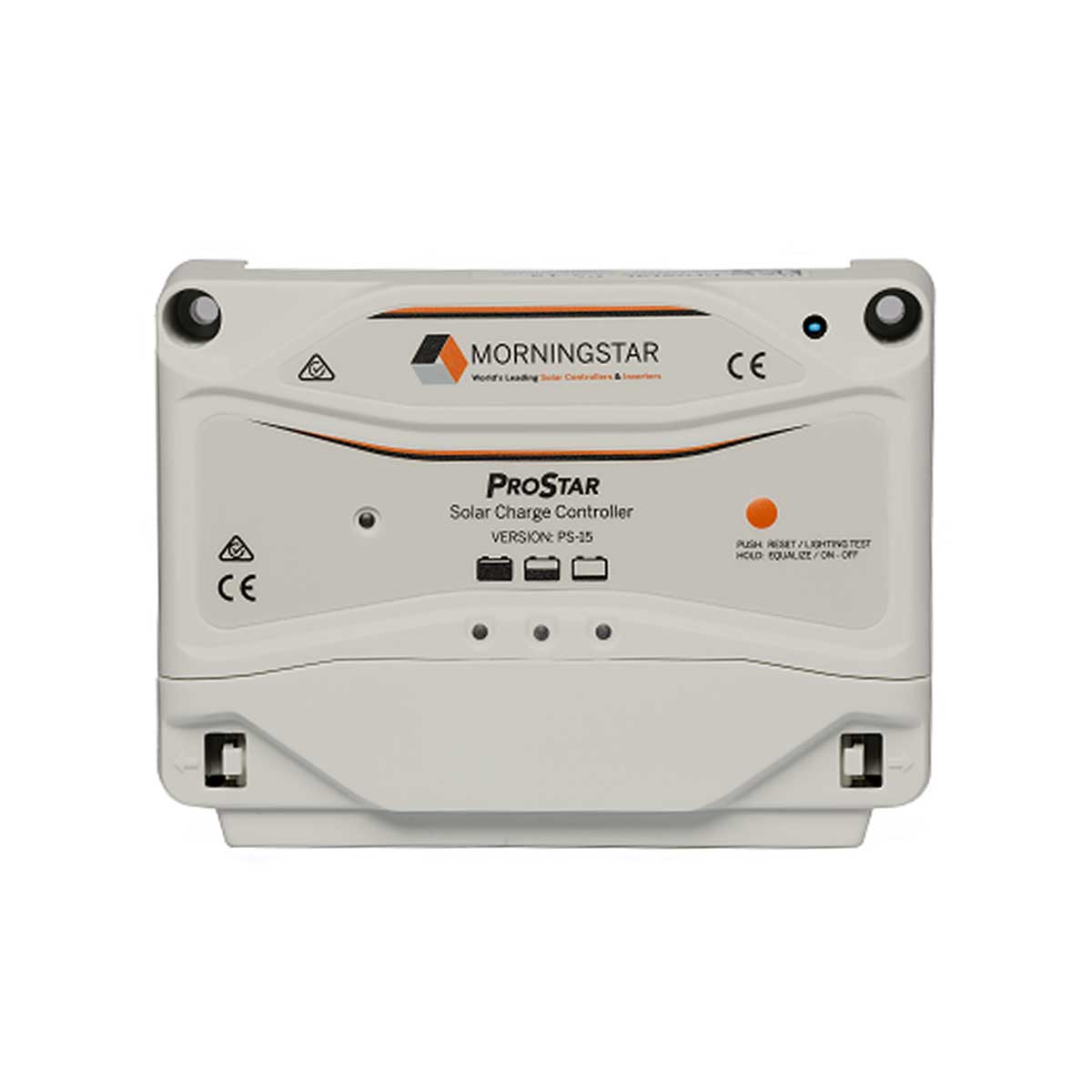

ProStar Gen3

PS-15

Same as PS-15A but without the meter.


SunSaver™

Industrial-grade design that’s “the single most successful charge controller in the solar industry.” Perfect for smaller off-grid systems up to 400Wp

“…amazing product…well built and well designed…it’s the one I wish I’d bought first.”


MPPT Model

SunSaver MPPT 15L

SS-MPPT-15L

15A battery current, up to 400Wp. 12, 24Vdc with low voltage disconnect.

PWM Models

SunSaver SS 20L

SS-6-12V

6A solar and load current. 12Vdc.

SunSaver SS 20L

SS-6L-12V

6A solar and load current. 12Vdc with low voltage disconnect.

SunSaver SS 20L

SS-10-12V

10A solar and load current. 12Vdc.

SunSaver SS 20L

SS-10L-12V

10A solar and load current. 12Vdc with low voltage disconnect.

SunSaver SS 20L

SS-10L-24V

10A solar and load current. 24Vdc with low voltage disconnect.

SunSaver SS 20L

SS-20L-12V

20A solar and load current. 12Vdc with low voltage disconnect.

SunSaver SS 20L

SS-20L-24V

20A solar and load current. 24Vdc with low voltage disconnect.


SunSaver Duo™

“Love it…it was worth the extra money over other brands.”

SunSaver performance with specialized two-battery charging capability, for RV/caravan and marine use.


PWM Models

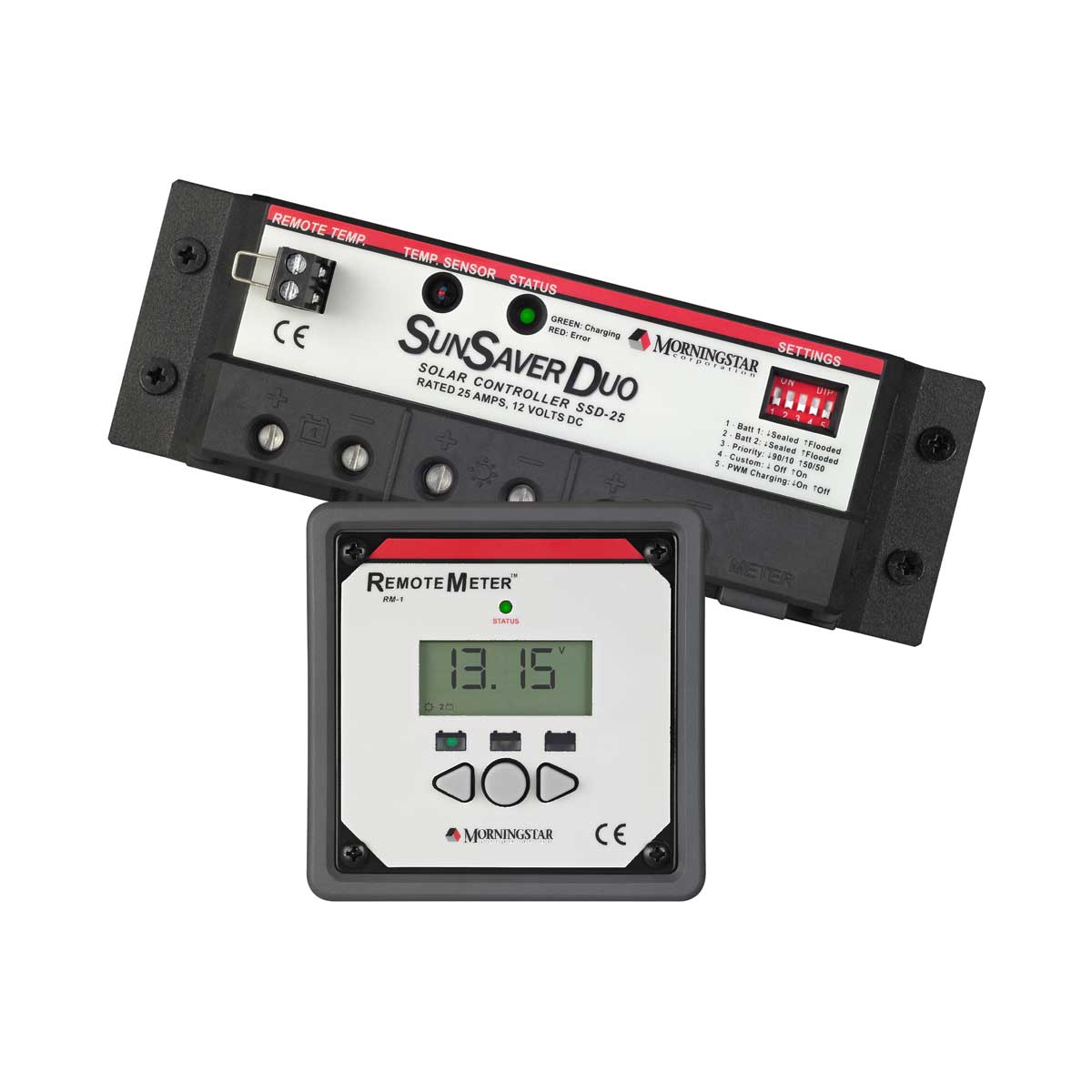

SunSaverDuo SSD/RM

SSD-25M

25A solar current. 12Vdc. Includes remote meter.

SSD-25

Same as SSD-25M but remote meter is optional.


SunKeeper™

Compact “point of use” controller mounts directly to the solar module junction box or module frame– no additional housing needed

“…great little unit…an outstanding charge controller.”


PWM Models

SunKeeper SK-6

SK-6

6A solar current. 12Vdc.

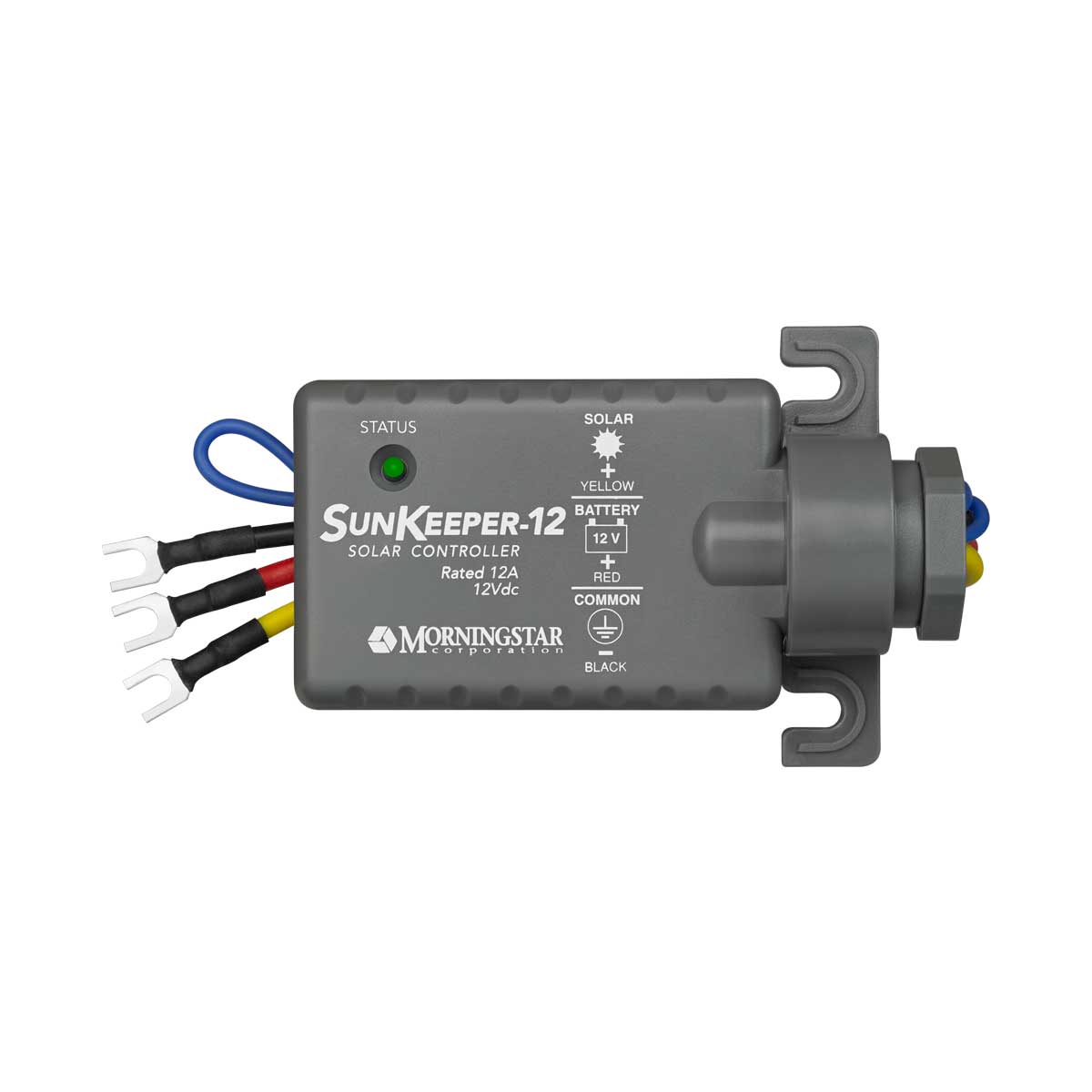

SK-12

12A solar current. 12Vdc.


SunLight™

World’s leading solar lighting controller. Used for street lighting, parking areas, facilities, signage, much more.

“Bulletproof and dependable…I will use them again and again.”


PWM Models

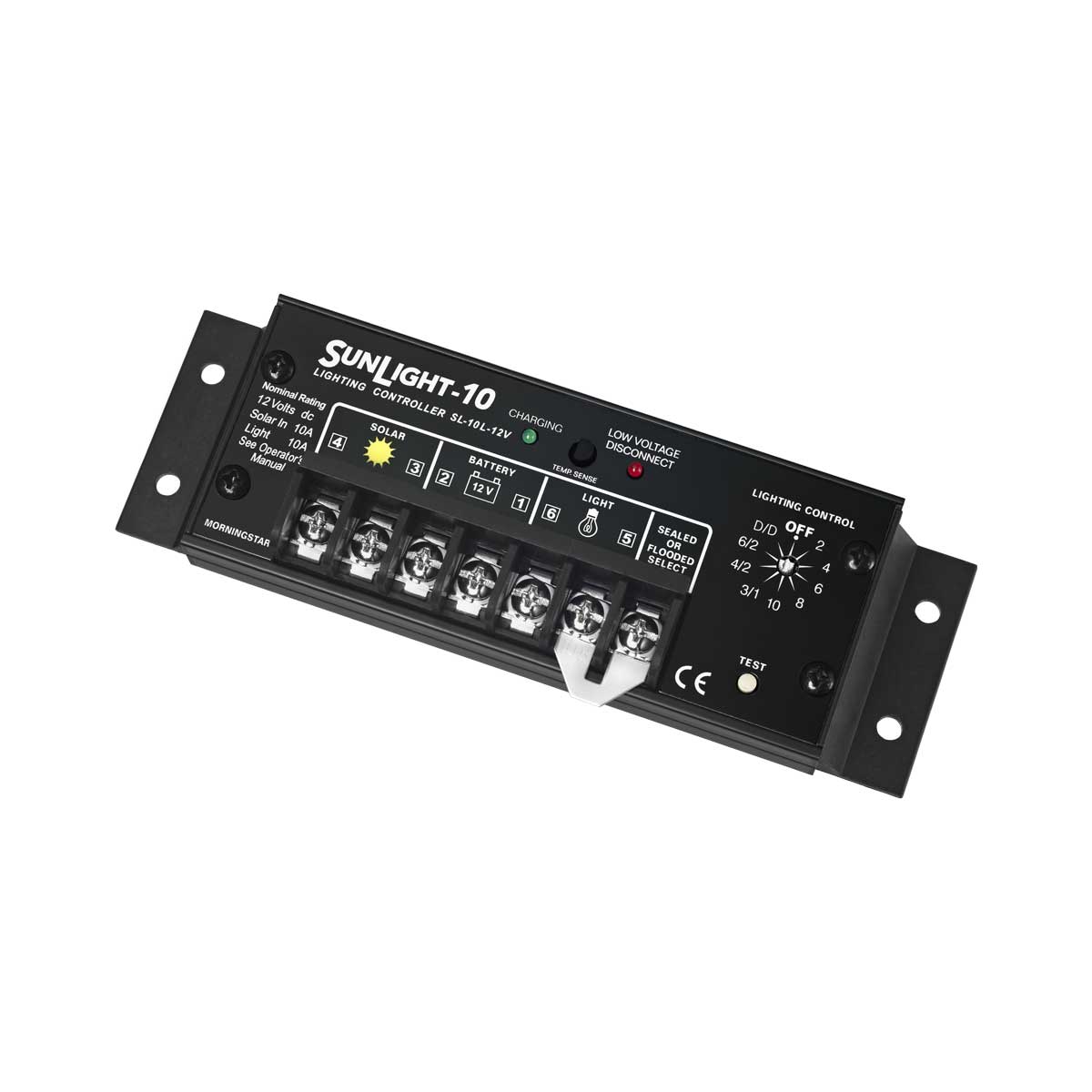

SunLight

SL-10L-12

10A solar and load current. 12Vdc.

SunLight

SL-10L-24

10A solar and load current. 24Vdc.

SunLight

SL-20L-12

20A solar and load current. 12Vdc.

SunLight

SL-20L-24

20A solar and load current. 24Vdc.


SunGuard™

Single-module compact controller for small systems, in professional and consumer applications.

“Rock solid…great charge controller for small systems.”


PWM Models

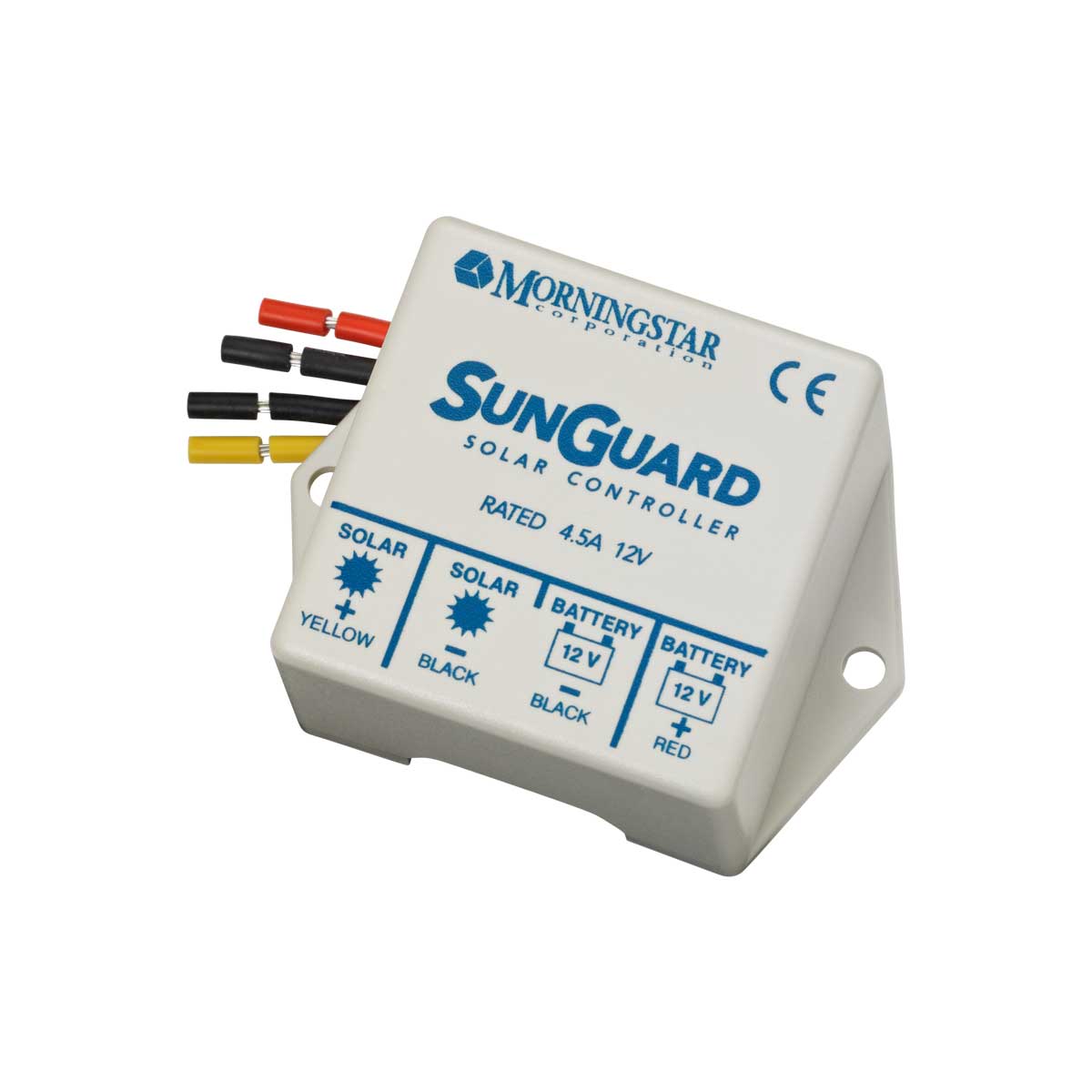

SunGuard SG-4

SG-4

4.5A solar current. 12Vdc.

Morningstar technology, quality and reliability that’s affordable for small residential and other applications, with more basic features. Available outside North America in selected international markets (contact an authorized distributor for information).

EcoBoost MPPT™

Affordable MPPT controllers with TrakStar solar harvesting technology for residential and other applications. Not available in US and Canada.


MPPT Models

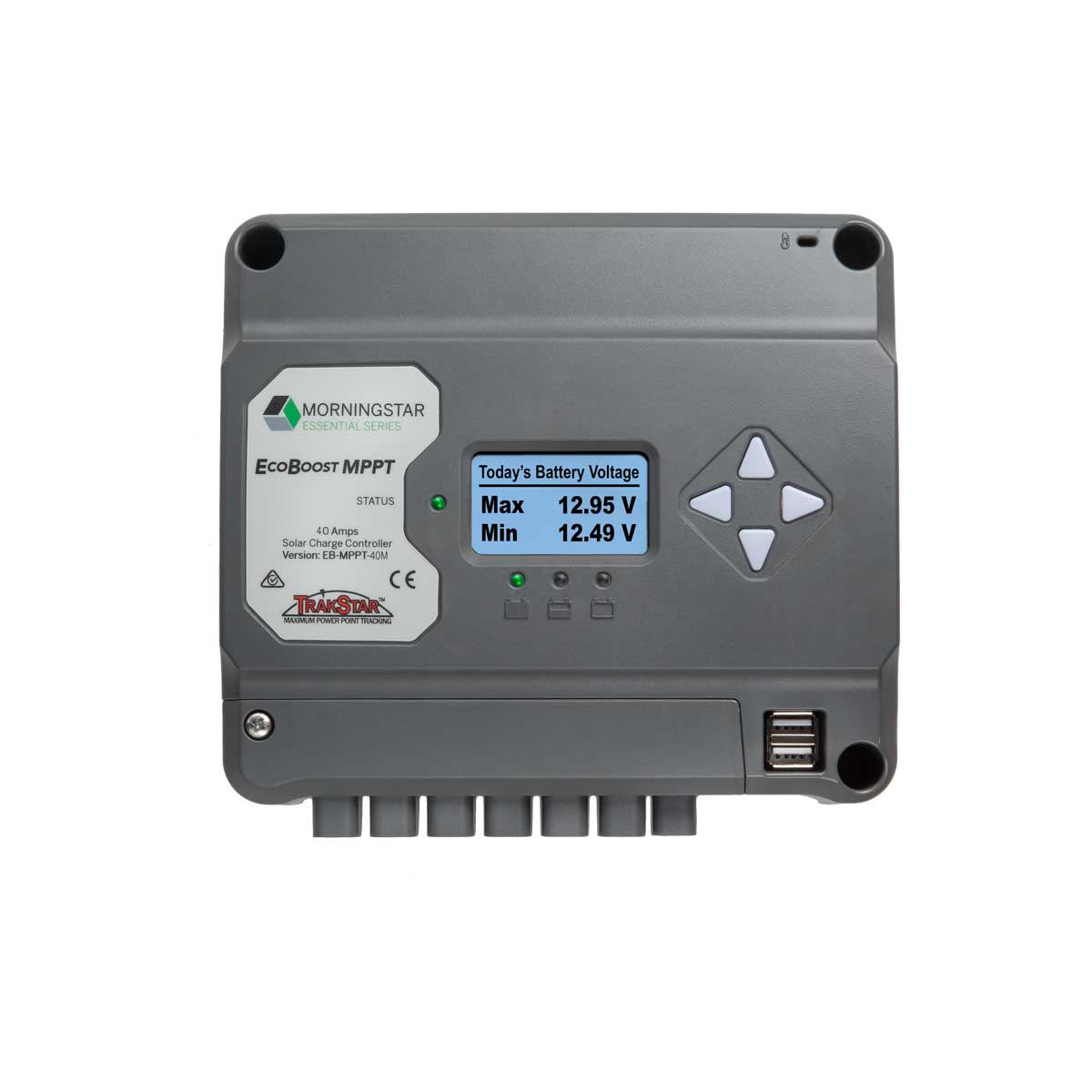

EcoBoost MPPT

EB-MPPT-40M

40A battery current. 12, 24Vdc. Two USB ports for directly charging mobile devices. With meter.

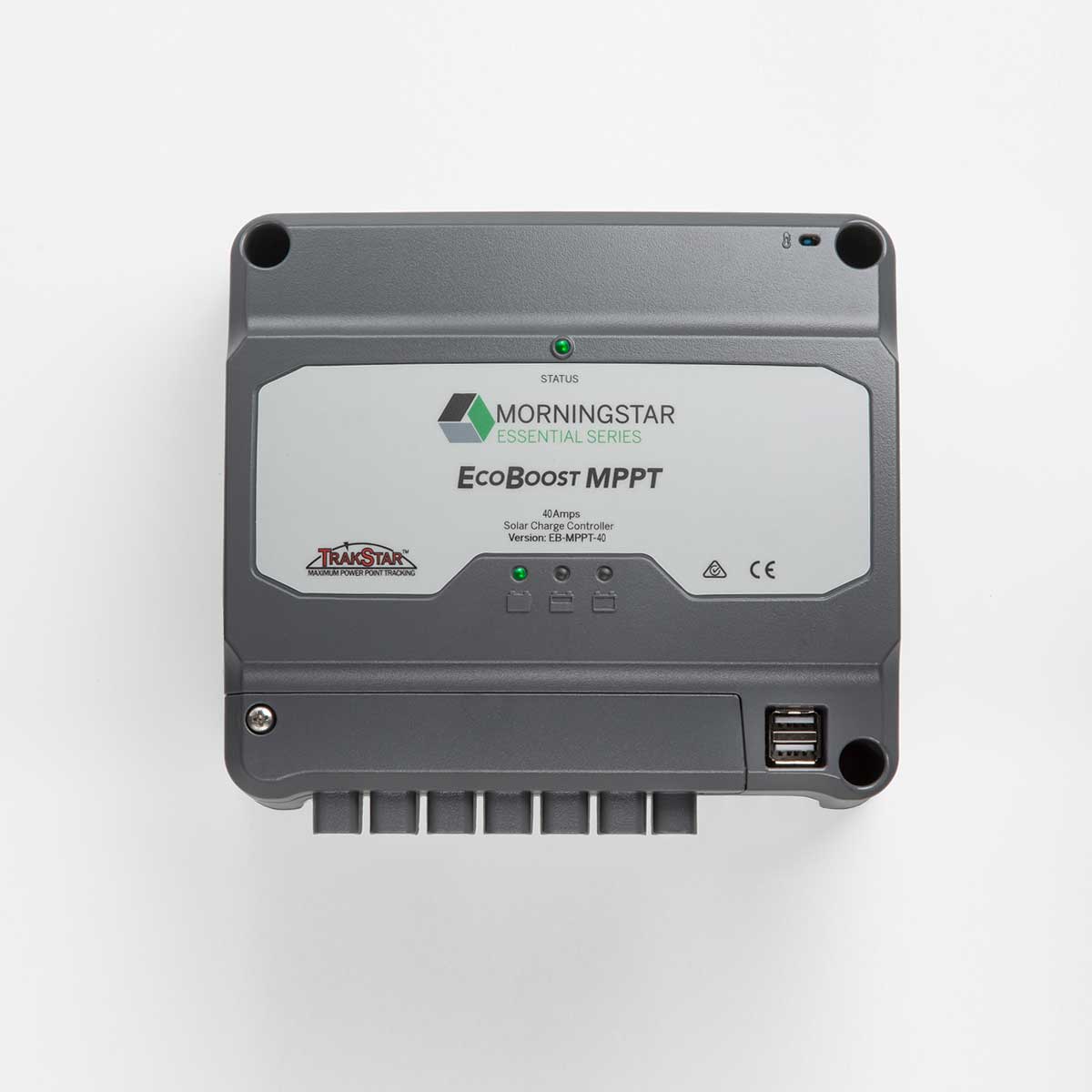

EcoBoost MPPT

EB-MPPT-40

Same as EB-MPPT-40M but without the meter.

EcoBoost MPPT

EB-MPPT-30M

30A battery current. 12, 24Vdc. Two USB ports for directly charging mobile devices. With meter.

EcoBoost MPPT

EB-MPPT-30

Same as EB-MPPT-30M but without the meter.

EcoBoost MPPT

EB-MPPT-20M

0A battery current. 12, 24Vdc. Two USB ports for directly charging mobile devices. With meter.

EcoBoost MPPT

EB-MPPT-20

Same as EB-MPPT-20M but without the meter.


EcoPulse™

PWM controllers delivering essential off-grid battery regulation functions in an easy-to-use package. Not available in US and Canada.


PWM Models

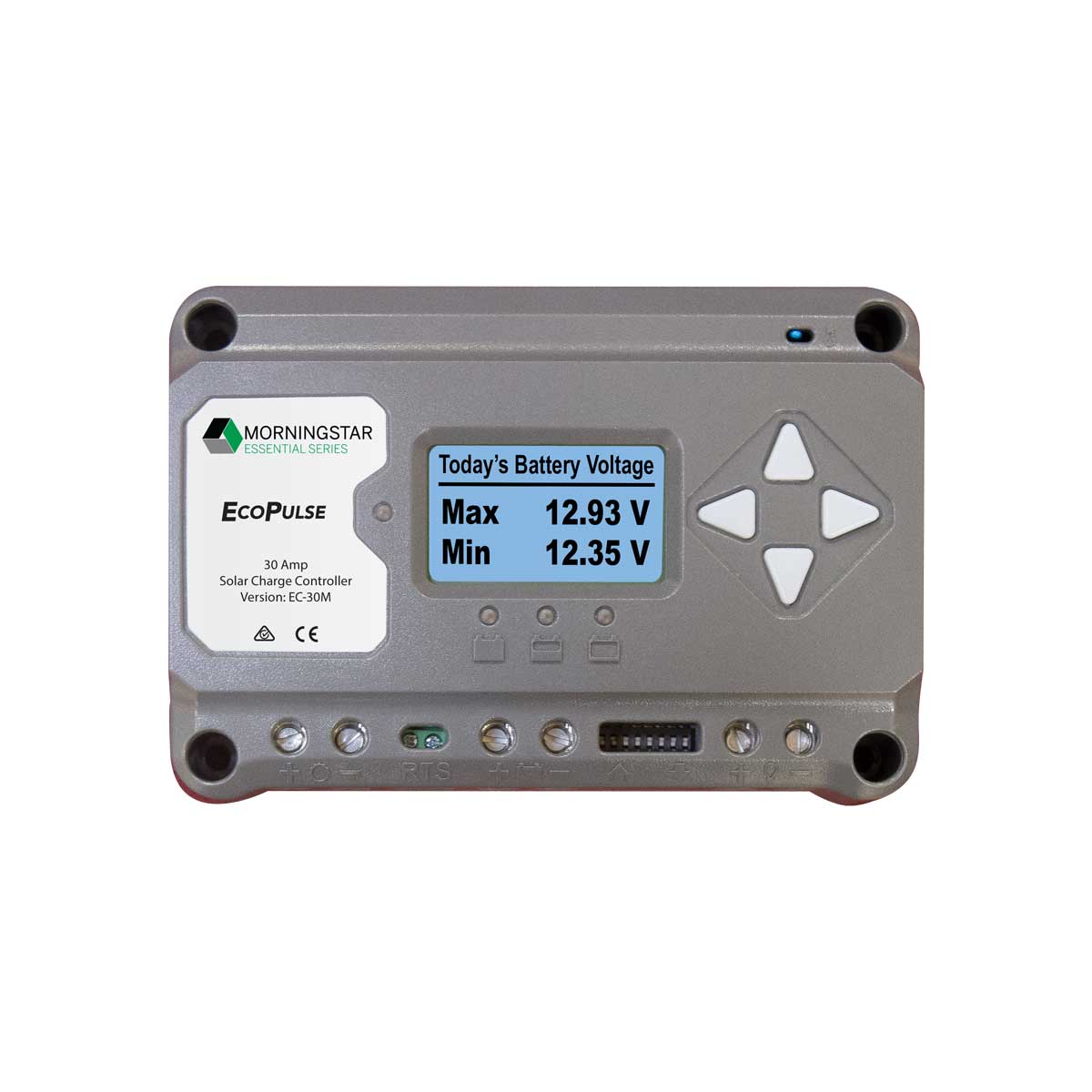

EcoPulse

EC-30M

30A battery current. 12, 24Vdc. With meter.

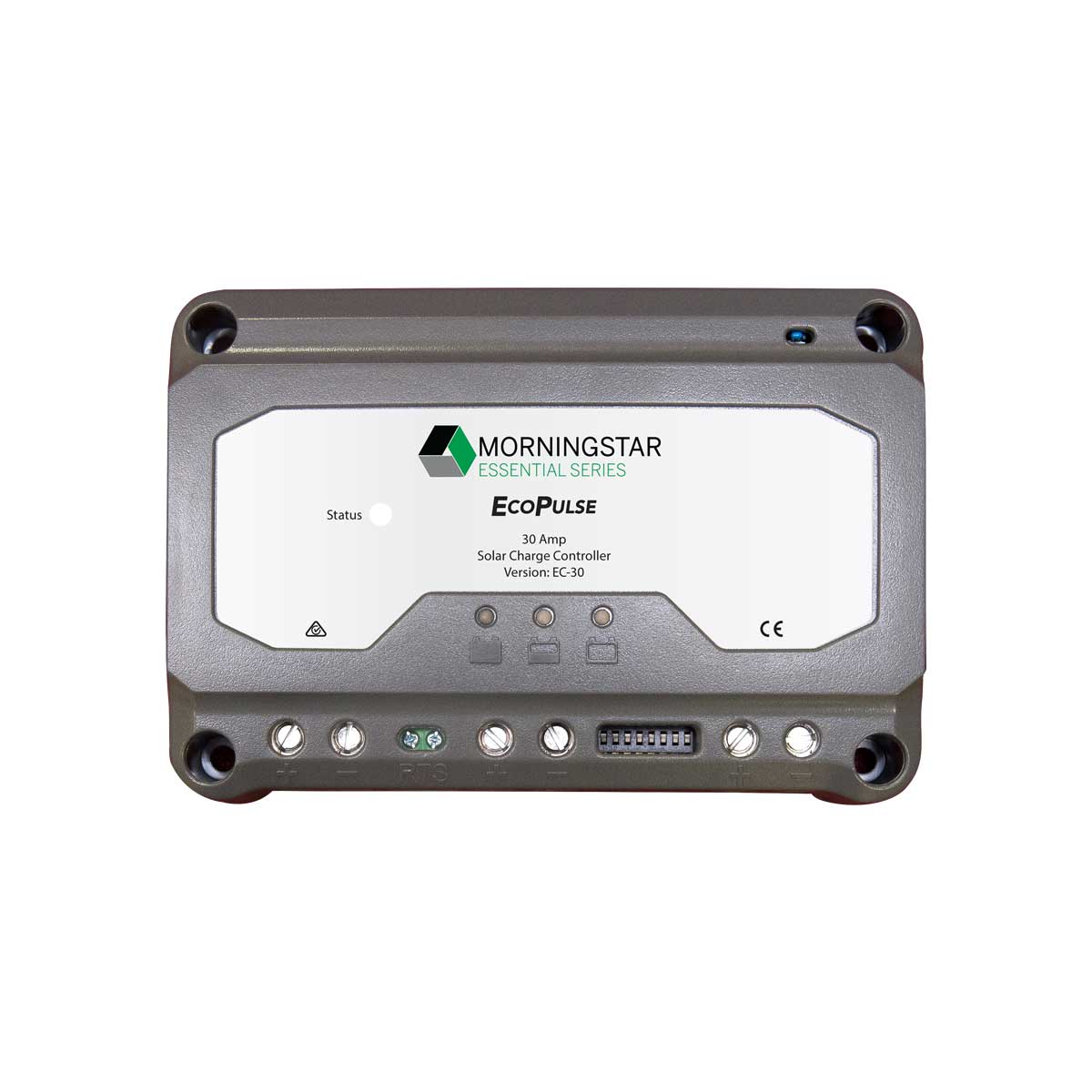

EcoPulse

EC-30

Same as EC-30M but without the meter.

EcoPulse

EC-20M

20A battery current. 12, 24Vdc. With meter.

EcoPulse

EC-20

Same as EC-20M but without the meter.

EcoPulse

EC-10M

10A battery current. 12, 24Vdc. With meter.

EcoPulse

EC-10

Same as EC-10M but without the meter.


SHS™

Low cost, affordable PWM controllers for rural electrification and other projects. Includes low-voltage disconnect.
Not available in US and Canada.


PWM Models

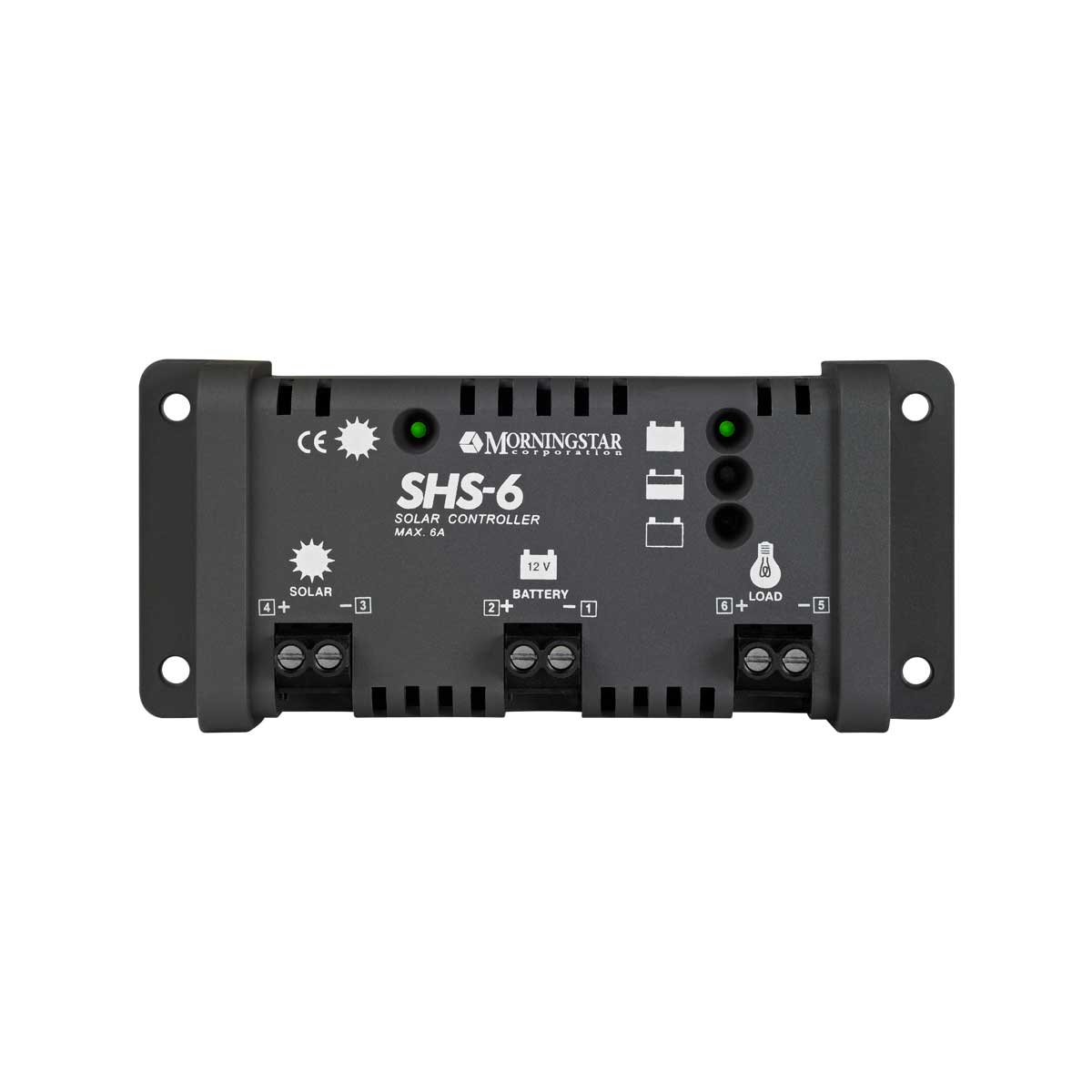

SHS

SHS-6

6A battery current. 12vdc. Built-in lighting control for dawn-to-dusk operation.

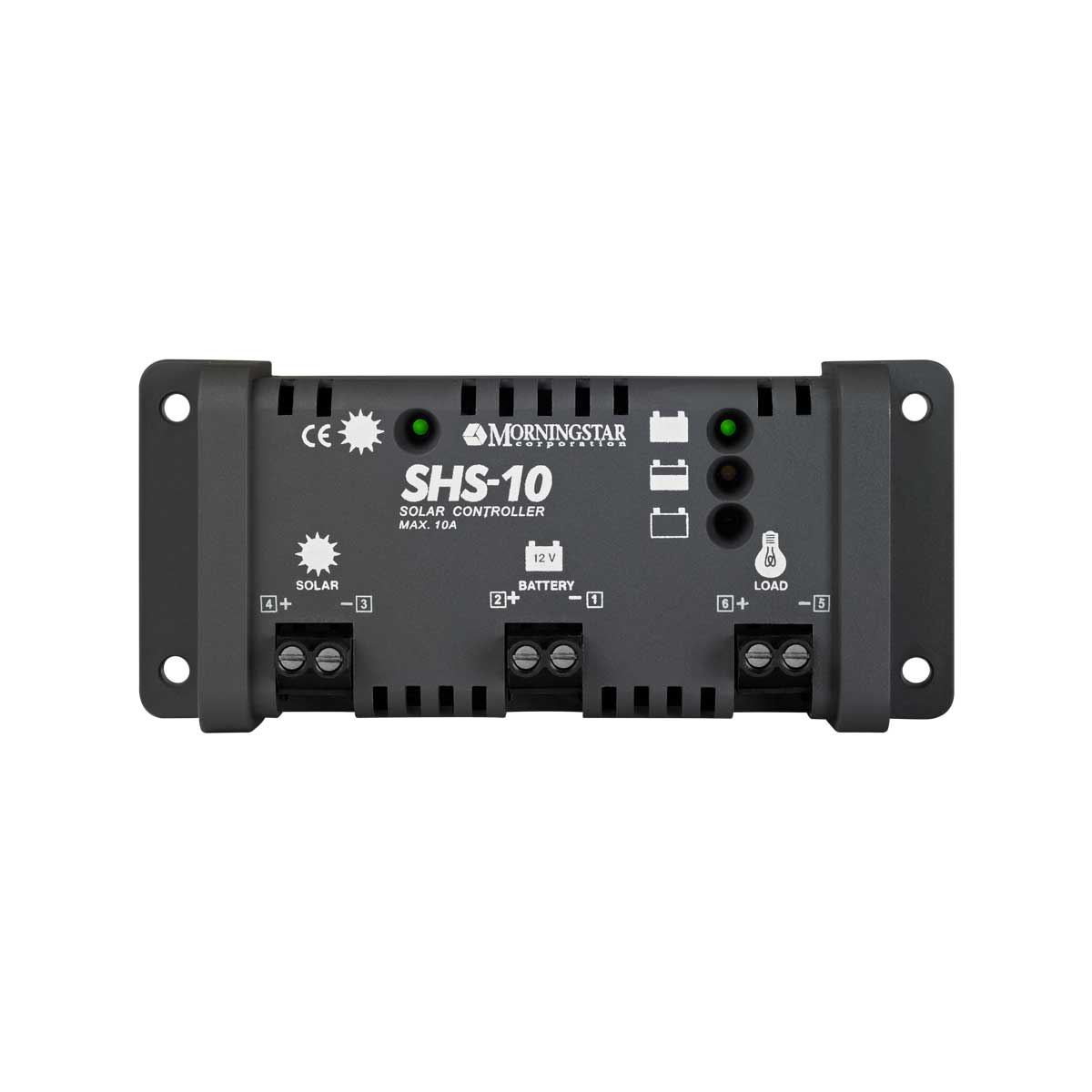

SHS

SHS-10

10A battery current. 12vdc.

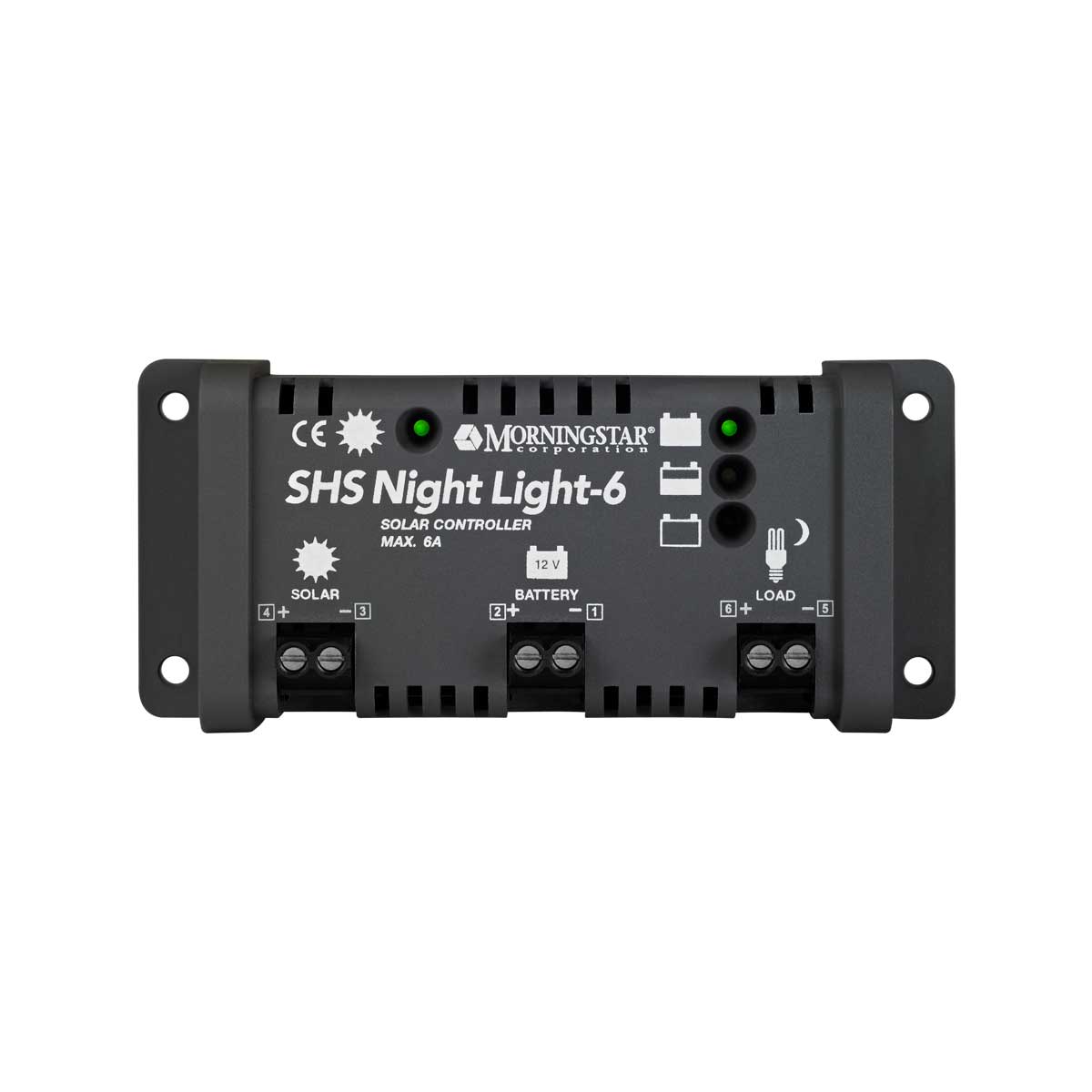

SHS

SHS-NL-6

6A battery current. 12vdc. Built-in lighting control for dawn-to-dusk operation.

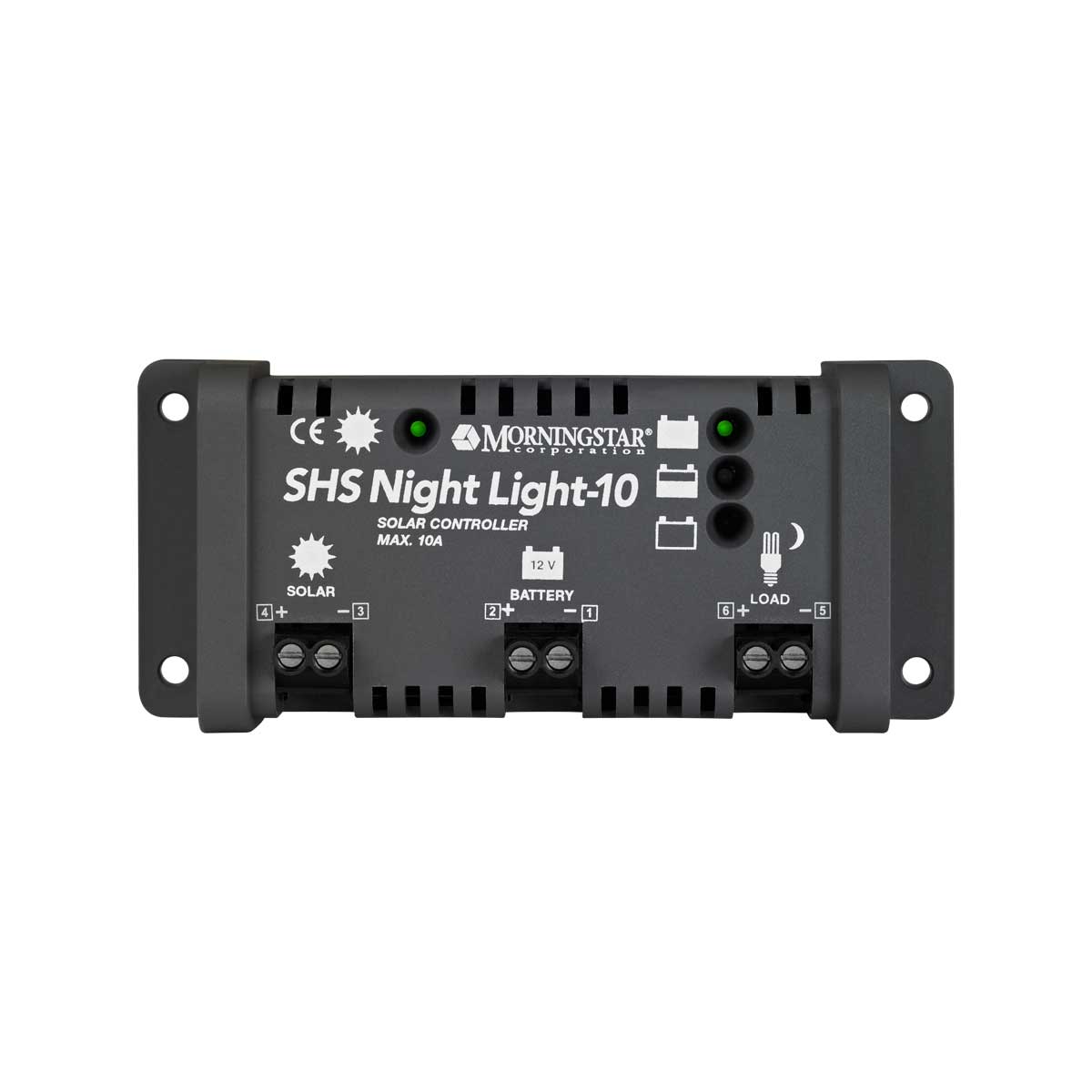

SHS

SHS-NL-10

10A battery current. 12vdc.
