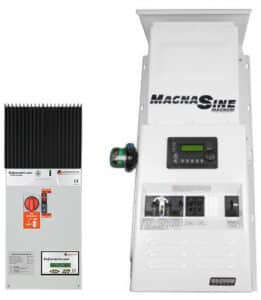

All TriStar MPPT and TriStar MPPT 600V controllers include Related Product Links to Wholesale Solar’s Four Star Power Centers. These Power Centers include the pre-wired BOS components needed to integrate inverter chargers with a solar controller, battery bank, and AC panel(s) (grid-tied or grid-tied battery backup). The following TriStar Models require no additional Battery Breakers which requires only a Single connection to the Battery Terminal or directly to the battery. (Additional Solar PV Combiner and other BOS may be required):

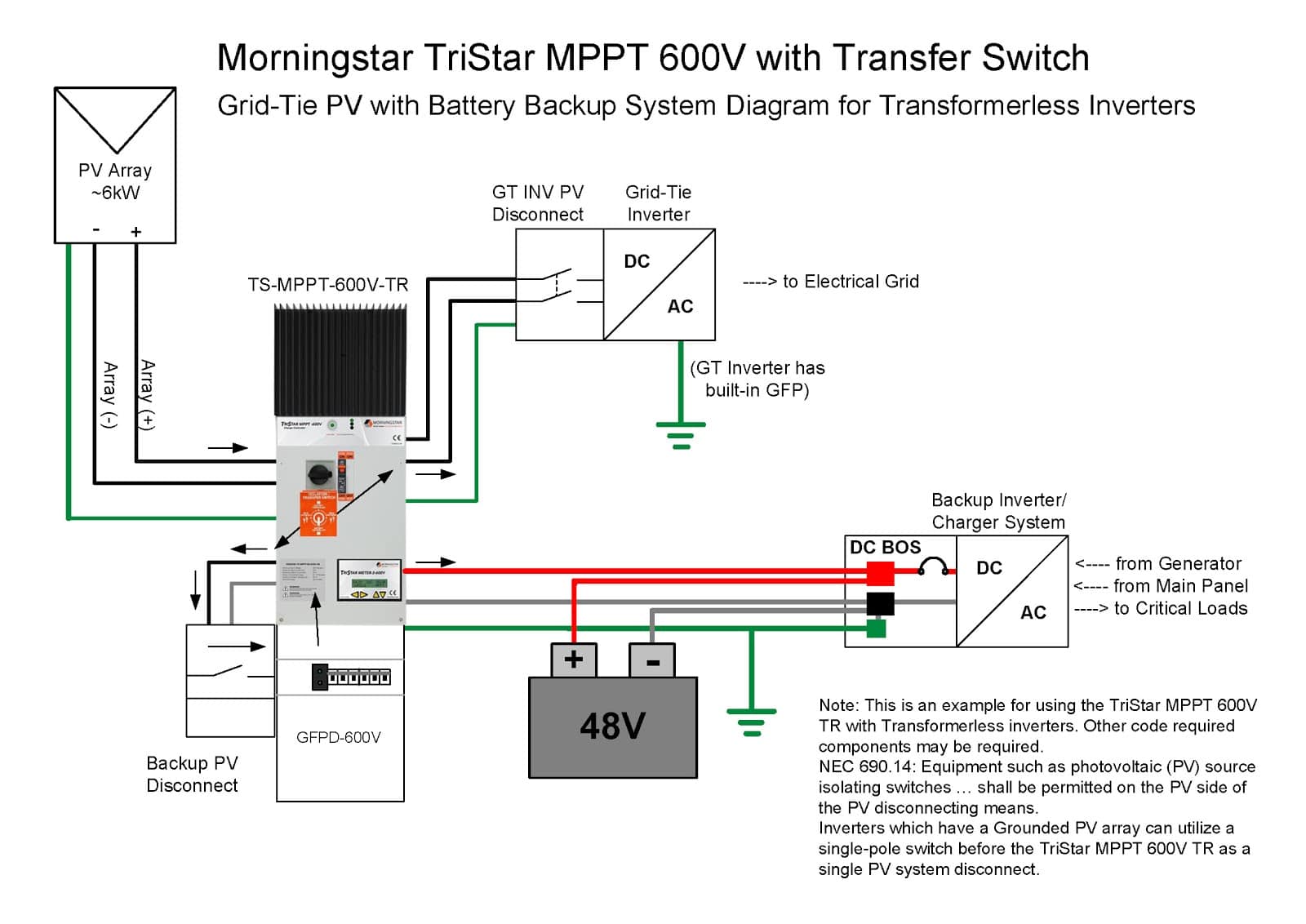

TS-MPPT-60-600V-48-DB-TR (With DC Transfer Switch)
TS-MPPT-60-600V-48-DB-TR-GFPD (Pre-wired with Ground Fault Protection Device)
TS-MPPT-60-600V-48-DB (With Disconnect Box)
The Following TriStar Models will require additional Battery Breakers for the related Power Centers. (Additional Solar PV Combiner and other BOS may be required)
TS-MPPT-45 (45A/150V max. Voc)
TS-MPPT-30 (30A/150V max. Voc)
Accessories related to Morningstar’s TriStar MPPT controllers include:
Optional TriStar Meters
TriStar TS-M-2-600V Digital Meter (FacePlate for 600V models)
TriStar TS-RM-2 Meter (Remote for 150V and 600V models)
TriStar TS-M-2 Meter (FacePlate for 150V models)
MeterHub for using a meter with Multiple Controllers
Ground fault protection Devices
Other
Wholesale Solar can also provide other Solar PV equipment such as solar PV modules, Batteries, additional BOS components and custom pre-wired solutions options (TriStar MPPT 600V must be installed separately).
